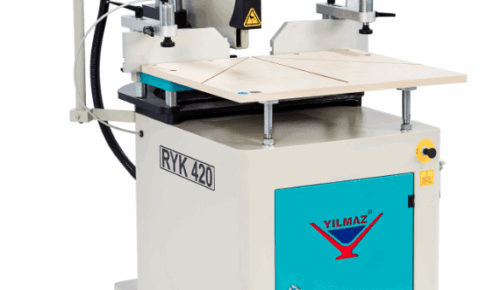

RYK 420 W Radial Saw Machine is designed for the strait or angular cutting operations of the large size of materials made of PVC, teflon, bakelite or wood.
RYK 420 W allows straight and angular cuttings by means of the pivoting and tilting head
PRODUCT VIDEO
TECHNICAL SPECIFICATIONS TABLE
2.2 kW /4.7A / 400V AC 3P+PE / 50/60 Hz.
---
D: Ø420 mm
d: Ø30/32 mm
24 L/min
6-8 bar
184x76x159
255 Kg / 202 Kg
DETAILS
Performing of different cutting operations are possible by means of the pivoting and tilting features
Powerful cutting operations by means of the 2.2 kW 3000 RPM motor
Smooth movement, high precision and great sensitivity provided with gas spring, linear bearings and ergonomic handle
Cast iron construction of the body that is strong and lasting
Robust mechanical construction enables the ease of adjustment for the requested cutting angles
Location points at 15°-22,5°-30°-45°-60°-90° both left and right
Pivoting range from 45° right to 60° left infinitely adjustable
Tilting range from 90° to 45° left
Equipped with Ø 420 mm saw blade for wood and PVC cutting operations
Air gun
2 x pneumatic vertical clamp
Laser marking indicating the cutting line
Brake unit working with motor stop button
Digital display for ease adjustment of pivoting angle
Hydraulic control unit for saw head feed rate
Special miter for longitudinal cutting operations
DKN 602 length stop
Connection kit for DKN and MKN length stops
Spare saw blade for PVC and wood cutting, Ø 420 mm
